KPerformance™ Front Mount Intercooler (FMIC) for BMW F07, F10, F11 518d, 520d, 520dX models with N47N and B47 engines.
Our intercooler offers approximately 97% more cooling capacity than the original (OEM) intercooler and utilizes a Tube & Fin structure designed to dissipate heat very effectively. This ensures a low air charge temperature for high boost pressure applications (even 3 bar and above), making it an excellent and reliable choice for ‘Stage 2’ and ‘Stage 3’ builds.
FITS THESE BMW MODELS:
BMW 5 Series: F07, F10, F11 [2010-2016]
518d (105kw / 143hp) – N47N
518d (110kw / 150hp) – B47
520d (135kw / 184hp) – N47N
520d ED (135kw / 184hp) – N47N
520dX (135kw / 184hp) – N47N
520d (140kw / 190hp) – B47
520dX (140kw / 190hp) – B47
Note: If your model is not listed here, look for it under another product. If you cannot find your model anywhere, contact us for assistance.
SPECIFICATION:
• Core width: 570 mm
• Core height: 302 / 206 mm
• Core depth: 45 / 100 mm
• Inlet/outlet: 61 mm
• Air capacity: 14.2 L

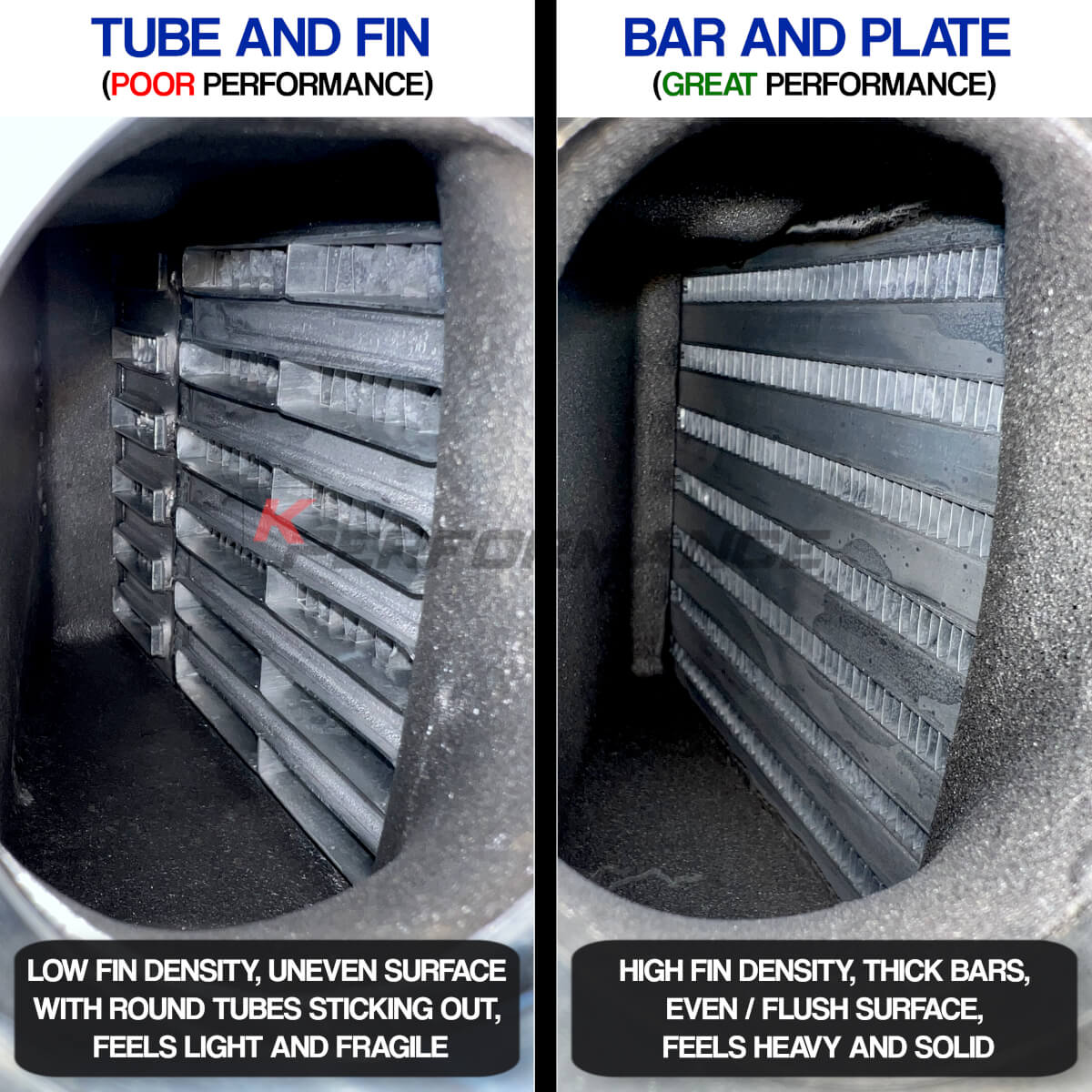

• Structure: Tube & Fin
• High-grade aluminum
• Good for up to 500 hp
OEM reference part numbers: 17 51 7 805 629, 17517805629, 7805629, 17 51 7 812 016, 17517812016, 7812016
